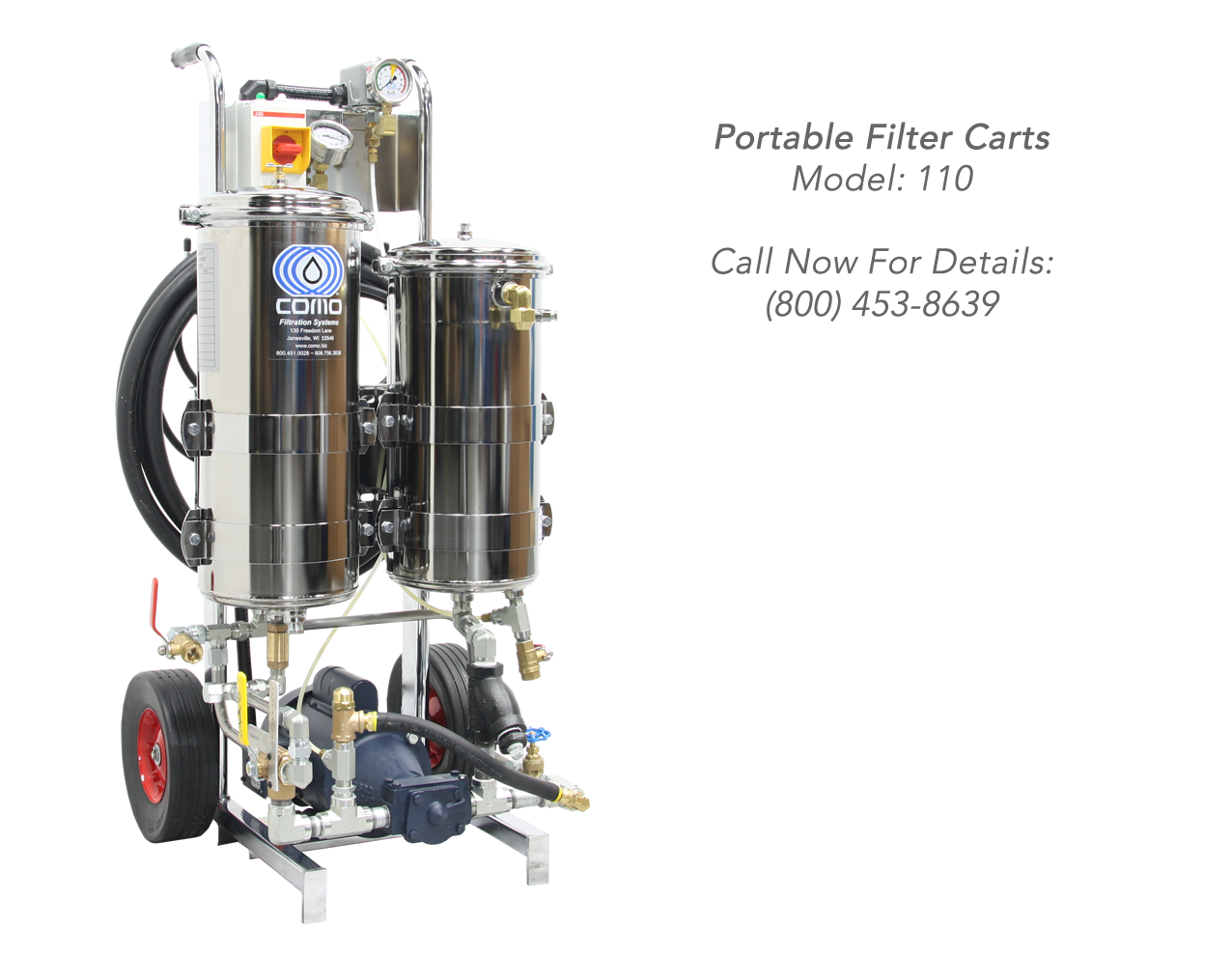

Model 110 Portable Filtration Carts

Portable Oil Filtration Carts

Our portable filtration carts use multi-pass filtration to filter oil multiple times, capturing both fine particles (down to 4 microns and below) as well as larger contaminants (greater than 100 microns). This advanced filtration process helps extend fluid life, improve equipment performance, and reduce maintenance costs.

Multi-pass filtration is typically performed using a kidney loop system that continuously filters oil directly from the machinery sump or reservoir, whether the equipment is operating or not. Because the filtration system operates independently of the machine, a minimum flow rate is not required, allowing the oil to be cleaned slowly and consistently for maximum contaminant removal.

Portable Oil Filter Carts are designed for easy transport between jobs, providing flexible filtration wherever it is needed. They are an ideal solution for maintenance teams responsible for servicing multiple pieces of equipment throughout a facility. Our Model 110 Portable Filtration Cart features a single depth filter housing, a bag filter housing, and is available with either a 1 GPM or 3 GPM pump.

Model 110 Portable Filter Cart Standard Features

• (1) C-1000 Depth Filter Housing
• (1) Bag Filter Housing
• 1 or 3 GPM Iron Gear Pump with Buna mechanical seals
• 3/4 HP TEFC Motor, 115V, Single Phase, 60Hz
• High and low pressure switches for unattended operation
• Power and pump indicator lights
• Gate valve for flow control
• Pressure gauge to monitor filter element loading
• Inlet wye strainer to protect the pump
• Fluid transfer feature for moving fluids without filtration
• Stainless steel element lifters
• Powder-coated filter housings
• Pressure relief valves
• Chrome-plated frame with 10-inch oil-resistant wheels

Optional Features

• Heaters for very high viscosity oils
• Air diaphragm pumps for water-based fluids and explosion-proof applications
• Stainless steel filter housings

Benefits of Multi-Pass Filtration

Over time, multi-pass filtration dramatically reduces total fluid contamination, resulting in significant improvements in ISO cleanliness codes. By continuously removing harmful contaminants, the system helps extend oil life, improve machinery reliability, reduce downtime, and lower maintenance expenses.

Each filter element is capable of holding up to 20 pounds of dirt and 1 gallon of water, reducing the frequency of filter changes while maintaining excellent filtration performance.

Oil-Based Filtration Applications

• Hydraulic Oil
• Gear Oil
• Cutting Oil
• Engine Oil
• Transformer Oil
• Vacuum Pump Oil

Water-Based Filtration Applications

• Machine Tool Coolant
• Cutting and Grinding Fluids
• Grinding Fluids
• Drawing and Stamping Fluids
• Deionized (DI) Water

Improve Equipment Performance and Fluid Life

Whether your operation uses hydraulic systems, gearboxes, machining centers, or industrial processing equipment, our portable filtration carts provide an effective solution for maintaining cleaner fluids and protecting valuable machinery. The result is improved efficiency, longer equipment life, reduced downtime, and increased profitability.

Let our filtration experts help you incorporate a portable filtration system into your operation to maximize your facility's efficiency, quality, and profitability. Call 800-453-8639 today for more information or to discuss the right filtration solution for your application.
